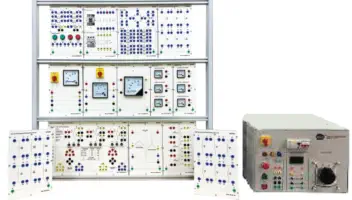

EXPERIMENT COVERAGE • Ratio Test • Polarity test of transformer • Series connection in a multiple winding transformer • Open Circuit Test • Short Circuit Test • Impedance of a transformer • Full Load Test • Voltage regulation & rectifier • Delta and Star connection • Star and Delta connection • Delta and Delta connection • Star and Star connection TEACHING MODULE SPECIFICATION • THREE PHASE POWER SUPPLY MODULE - MODEL : PSU-3P-03 • Overcurrent/leakage protection (RCCD/MCB), with resettable switch • Provided with start/stop push button and Emergency push button. • Working voltage: 3 phase 415VAC, 50Hz • Rated output: ▪ 3 Phase AC Adjustable Output : 3 x 0 -450V: 6A ▪ 3 Phase AC Fixed Output: 240/415V:10A(max.) • Resettable fuse protection via MCB • Terminals: 4mm safety sockets • THREE PHASE TRANSFORMER MODULE - MODEL : 3P-TRANSFORMER-01 • Primary and secondary windings are divided in several sections to allow many possibilities of connection. • Power Rating : 1KVA • Primary/Phase : 415V (3X0~240VAC) • Secondary/Phase : 6 X (0~120VAC) • Frequency : 50Hz • Protection : Fuse protections for input and output sections. • SINGLE PHASE TRANSFORMER MODULE - MODEL : SPT-01 • Three single phase transformer • Power rating : 180VA • Primary/phase : 240VAC • Secondary/phase : 120VAC • Frequency : 50Hz • SINGLE PHASE AC VOLTMETER MODULE - MODEL : ACV-01 • Measurement range: ▪ 0 ~ 100V AC ▪ 0 ~ 300V AC ▪ 0 ~ 500V AC • Display : Analog • SINGLE PHASE AC AMMETER MODULE - MODEL : ACM-01 • Measurement range: ▪ 0 ~ 2A AC ▪ 0 ~ 10A AC ▪ 0 ~ 30A AC • Display : Analog • OVERCURRENT PROTECTION RELAY - MODEL : OPR-01 • Maximum Voltage : 690VAC • Trip Class : 10A • Current Setting Range : 1~1.6A • HIGH VOLTAGE RESISTANCE MODULE - MODEL : HV-RM-01 • 600 Ohm x 3, 1K Ohm x 3 • Power Rating : 150 Watt • Via 4mm safety connector outputs • HIGH VOLTAGE CAPACITANCE MODULE - MODEL : HV-CM-01 • 1uF x 3, 4uF x 3 • Voltage Rating : 450V • Via 4mm safety connector outputs • HIGH VOLTAGE INDUCTANCE MODULE - MODEL : HV-IM-01 • 0.8H x 3, 1.2H x 3 • Current Rating : 1A • Via 4mm safety connector outputs • THREE PHASE AC VOLTMETER MODULE - MODEL : 3P-ACV-01 • Measurement: RY, YB, BR, RN, YN and BN • OFF position • Measurement range: 0 ~ 500V AC • Display : Analog • THREE PHASE AC AMMETER MODULE - MODEL : 3P-ACM-01 • Measurement: Line Current (R , Y , B) • OFF position • Measurement range: 0 ~ 30A AC • Display : Analog • DELTA-STAR TRANSFORMER MODULE - MODEL : DST-01 • Three Phase Delta-Star transformer • Power rating : 1KVA • Primary/phase : 415VAC • Secondary/phase : 240VAC • Frequency : 50Hz • EXPERIMENT PANEL FRAME - MODEL : MR-002 • Aluminium/Metal construction • 2 or 3 layer • Mounting of the training modules • Dimension 1050mm (L) • 4mm SAFETY CONNECTING LEADS - MODEL : 4MM-SCL • 4mm safety connecting leads set MANUAL & ACCESSORIES • Operation / User Manual x 1 • Lab Experiment Manual (with answer) x 1
