MICRO HYDRO GENERATOR - MODEL : MHG-HYD-01
•

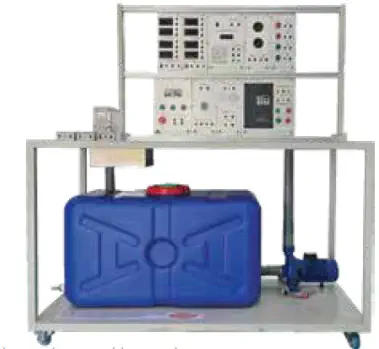

Micro Hydro Trainer Structure
▪ Enclosed housing constructed by steel with powder coated panel
▪ AC Electrical power 220 ~ 240V with MCB electrical input
▪ Tank and piping
▪ Moveable compartment with lockable castor wheels
•
Micro Hydro Generator
▪ 300 watt rated power
▪ Rated current 12.5A
▪ Output anti-winding device : Overall 3 phase
▪ Generator : Permanent Magnet Motor
▪ Permanent Magnet Rotor efficiency of 90%.
•
Water Pump
▪ Power: 0.75kW ~ 1.5kW
▪ Supply: Single Phase AC220-240VAC
•
POWER PROTECTION MODULE - MODEL : PPM-HYD-01
• DOL Starter
• Residual Current Circuit Breaker x1
• Miniature Circuit Breaker x1
• L / N / PE Output via 4mm Safety connector
•
POWER METER MODULE - MODEL : PMM-HYD-01
• Measures kWh, kVArh, kW, kVAr, kVA, Hz, PF, V, A, Demand etc.
• RS485 output & 2 Pulse Output
• Connection via 4mm safety connector
•
GENERATOR CONTROLLER MODULE - MODEL : GCM-HYD-01
• To control generator output
• Convert AC Voltage to DC Voltage output
• Battery charger controller
• Connection via 4mm safety connector
•
WATER PUMP MOTOR MODULE - MODEL : WPM-HYD-01
• To control water pump water flow
• Start & Stop push button x 1
• Run & Stop indicator x 1
• Connection via 4mm safety connector
•
DC / AC INVERTER MODULE - MODEL : DAI-HYD-01
• Continuous Power : 3000W
• Rate Output Voltage : 220-240VAC
• Input Voltage Range: DC 11V-15V
• Output Wave Form : Pure Sinewave
• Protection : Overload, Thermal, Short Circuit, Protection
• Connection via 4mm safety connector
•
DC LOAD SIMULATION MODULE - MODEL : DLS-HYD-01
• LED (Red) x 2 units
• LED (Green) x 2 units
• Connection via 4mm safety connector
•
AC LOAD SIMULATION MODULE - MODEL : ALS-HYD-01
• AC Load lamp bulb x 2
• Connection via 4mm safety connector
•
AC MEASUREMENT UNIT MODULE - MODEL : PM-HYD-01
• Input voltage : 240VAC/50Hz
• AC Voltmeter x 2
• Measurement range :
▪ 0 ~ 500VAC
▪ Size : 78mm x 42mm
• AC Ammeter x 2
• Measurement range :
▪ 0 ~ 30A (AC)
▪ Size : 78mm x 42mm
• Connection via 4mm safety connector
•
DC MEASUREMENT UNIT MODULE - MODEL : PM-HYD-02
• Input voltage : 240VAC/50Hz
• DC Voltmeter x 2
• Measurement range :
▪ 0 ~ 500VDC
▪ Size : 78mm x 42mm
• DC Ammeter x 2
• Measurement range :
▪ 0 ~ 30A (DC)
▪ Size : 78mm x 42mm
• Connection via 4mm safety connector
•
EXPERIMENT PANEL FRAME - MODEL : MR-0002
• Aluminium/Metal construction
• 2 or 3 layer
• Mounting of the training modules
• Dimension 1050mm (L)
•
CONNECTING SAFETY LEAD - MODEL : SL-4MM
• 4mm safety connecting leads set
MANUAL & ACCESSORIES
• Operation / User Manual x 1
• Lab Experiment Manual (with answer) x 1
