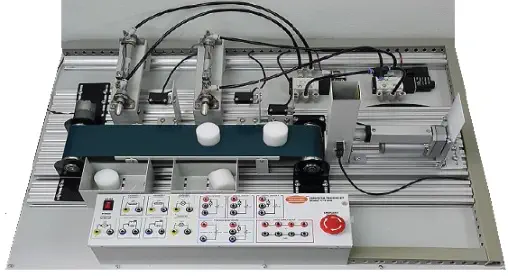

FEATURES • System that sorts objects of two different type (metalic and non metalic type) with dedicated receiving compartment trays • Supports programmable logic controller control system • Basic Input/Output simulation • Interfacing the PLC controller unit to external I/O devices • Incorporates safety measure • Develope programmable logic controller ladder program to control the overall operation • Study the operation of proximity photoelectric sensor • Basic operation and control of a motor using PLC • Study the control and operation of pneumatic actuator • Using sensor as trigger/counter input • Fault-finding & troubleshooting CONVEYOR APPLICATION • System housed in a robust and portable metal base form factor • Built in 24VDC/3A Power Supply (short circuit protection) • Power On Indicator • On board 4mm banana socket connectors for user friendly interface, with clearly labelled block diagram or description • 24VDC motor: approx. 17rpm max. • Conveyor belt dimension: Approx. 350mm(L) x 60mm(W) • Pneumatic cylinders: Double acting (2units) • Air regulator control valves for cylinders (4 units) • Object dispenser slot for auto placement of objects on to the moving conveyor • Dispenser actuator x 1 (24VDC) ▪ Inward & outward control with relay control • 24VDC, 5/2 way solenoid valves, pilot actuated (2 units) • Photoelectric sensor (1 unit), NPN, adjustable sensitivity range, light/dark sensing adjust, sensing distance 100mm • Inductive proximity sensor (1 unit), NPN, sensing distance 15mm, stainless steel body, PBT sensing face • Capacitive proximity sensor (1 unit), NPN, sensing distance 15mm, stainless steel body, PBT sensing face • Sample work piece provided • Incoming mains switch (1 unit) • Emergency Pushbutton (1 unit) • Receiving tray ( 2 unit) • Protection fuse • Input power supply: 240VAC/50Hz OPTIONAL PLC • OMRON PLC Training Kit • Panasonic PLC Training Kit • Siemens PLC Training Kit MANUAL & ACCESSORIES • Operation / User Manual x 1 • Lab Experiment Manual (with answer) x 1 • Power Cord Cable x 1 • Connecting Lead x 1 • Pneumatic Tubing & Accessories X 1 • Spare Fuse X 1
