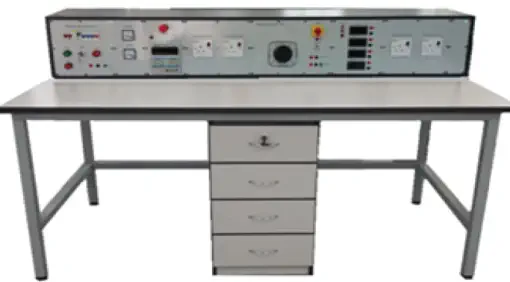

FEATURES • The workbench includes a power console unit with built-in customized basic electrical peripherals (such as AC & DC power supplies, safety module/switches, power sockets, connectors & etc.) that enable experiment to be carried out in an user friendly environment. • A convenient system whereby all the power supplies from its console panel can be accessed easily via standard connectors. • Each module on the console comprises of clearly labeled diagrams with built-in accessible connectors & wiring points. • For protection wise, the system incorporates uncompromised safety features to protect the unit and also the operator against any unwanted occurrence. SPECIFICATION • BENCH FRAME • Bench Frame dimension: 1720mm (W) x 820mm (D) x 740mm (H) approx. • Construction: approx. 38mm x 38mm hollow mild steel coated with epoxy powder coated finishing • Mounting: 4 steel leg sections attached to 1 common foot section • All 4 frame legs supported by plastic height adjustable legs caps • Color: Light Gray • BENCH TOP • Dimension: 1800mm (W) x 900mm (D) • Construction: Built from high density 25mm thickness highly compressed mulltilayer/multigrain solid chipboard • Protection: Scratch- resistant & non abrasive melamine resin lamination on board • Conceal ABS impact resistance protection for edges • Color: Light Gray • BENCH TOP CONSOLE UNIT • Dimension: 1800mm(L) x 300mm(D) x 300mm(H) approx. • Construction: Built from high compression/ density fine grain multi-layer chipboard(16mm thickness) . • Protection: Scratch- resistant & non abrasive melamine resin lamination on board. • Conceal ABS impact resistance protection for edges • Color: Light Gray • STORAGE DRAWER (OPTIONAL) • No. of Drawers(to specify): 4 units (only 1 unit is lockable) OR 3 units (all units are central lockable) , all drawer with handles • Construction: Built from high compression/ density fine grain multi-layer chipboard. • Scratch- resistant & non abrasive melamine resin lamination on board • Mobile type (moveable) OR can be fixed to the frame corner (to be specified when ordering) • Color: Light Gray • LABORATORY STOLL TYPE (OPTIONAL) • Robust construction: Seat made from heavy duty plywood, metal frame base • 2 Units • FABRIC COVER MID BACK REST CHAIR (OPTIONAL) • Fabric cover cushion, with mid back rest chair • Adjustable height lever, castor wheel base • 2 Units MODULE SPECIFICATION • INPUT PROTECTION & CONTROL • Residual Current Circuit Breaker protection (IΔn 30mA, In 40A, Un 240V) • Incoming mains On/Off switch • Miniature Circuit Breakers for supply outlet protection • Safety ON/OFF CAM Key Switch • On/Off Push Buttons • Power Input : Single Phase AC240/50Hz • Indicator for single phase mains supply: ▪ 1 unit (Red) • Emergency Push button : 1 unit • Includes approx. 3m of mains AC cable, terminated with one 3 pin CEE single phase plug unit for input supply • ANALOG METER INDICATORBENCH TOP • Analog AC Voltmeter (AC300V) x1 • Analog AC Ammeter (AC30A) x1 • BS SOCKET OUTPUT • Single Phase AC Output : ▪ 4 Units BS 3-Pin AC Outlet socket (Rating: 240VAC/13A) • With miniature circuit protection • DC POWER SUPPLY • On/Off power switch • DC Power Supply Output: 0V ~ 30VDC/3A Max. • Digital DC Output Display: Voltage and Current Ampere • Protection: Overload & Short-Circuit • Output Connection: Via 4mm Safety Binding Post • EXPERIMENTAL TRANSFORMER • Outputs: 0 ~ 240VAC/3A • On/Off Switch • Fused protection • Connectors: L/N/PE accessible via 4mm Safety Binding Posts • DIGITAL MEASUREMENT UNIT • AC Voltmeter (78mm x 42mm, 240VAC) (0 ~AC500V) x 1 • DC Ammeter (78mm x 42mm, 240VAC) (0 ~DC10A) x 1 • DC Voltmeter (78mm x 42mm, 240VAC) (0 ~DC500V) x 1 • AC Ammeter(78mm x 42mm, 240VAC) (0 ~AC10A) x 1 MANUAL & ACCESSORIES • Operation / User Manual x 1 • Connecting Lead x 1 Set
